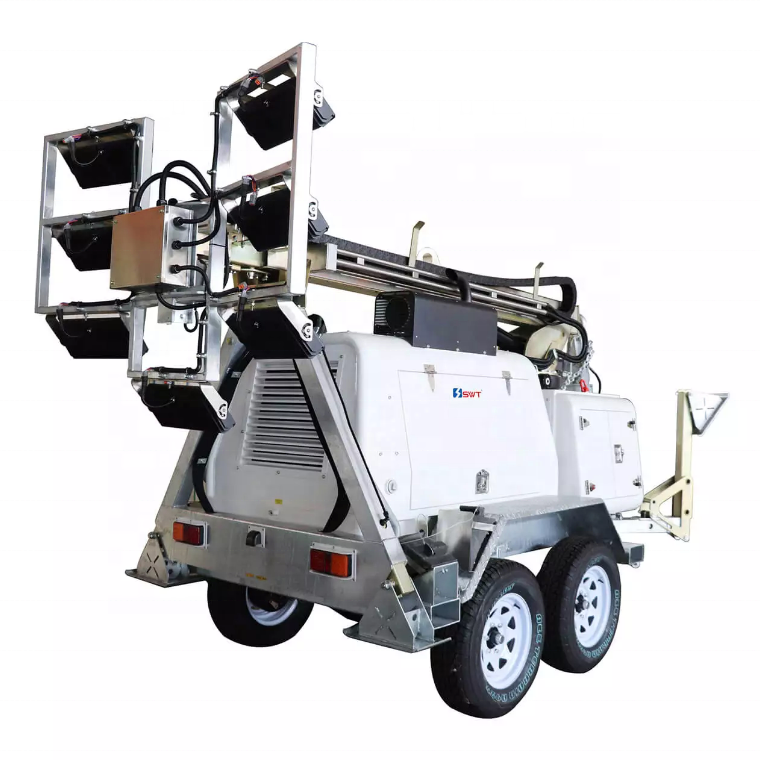

SWT 12KP LED Series Mining Site Trailer Mounted Hydraulic diesel light tower

Product Overview KP Series 10meters High Trailer Mounted Hydraulic Mobile Light Tower for mining siteSuperwatt KP series is the most powerful in the lighting tower family. Entirely hydraulic system with electrical controlling make every operation to be fast and flexible, safer and more reliable. Available with 6 floodlights or 12 LED illuminating an area of 500 meters radius. FEATURES AT A GLANCE Powered by Kubota engine, Mecc alte generator, with 12X300W LED lights
Smooth and safe operational the electrical controlling hydraulic system with the over center valves which keeping the hydraulic
ram in any position for along time even when the oil leaks out from the pipes or connectors.
The mast can extend to 10 meters, and the light bar can be adjusted from horizontal to vertical and the mast could rotate to 340° from the control panel
Automatic light control system，all of the lights turn on or turn off in order
The hydraulic legs of individual operation support stably and reliably even on rough ground to ensure the lighting tower work in
the 10 grade wind regularly
PRODUCT SPECIFICATIONS

Dimension	Length	4800mm
	Dimension	Width	2830mm
	2	Height	2900mm
	3	Full extending height	10m
	4	Generator Set power(kW, 1500rpm/1800rpm)	6kW/7.5kW
	5	Gross Weight	2116kg
Engine	Model	D1105(Kubota)
	7	Speed(rpm)	1500/1800
	8	Number of cylinders	3
		Engine character	4 cycles, water-cooled diesel
		Combustion System	E-TVS
		Engine aspiration	Naturally aspirated
		Emission level	Regular
Alternator	Model	Mecc alte LT3N-130/4
		Frequency(Hz)	50/60
		Rated Voltage(V)	220/110(50Hz), 240/120(60Hz)AC
		Insulation	Class H
		Protection grade	IP23

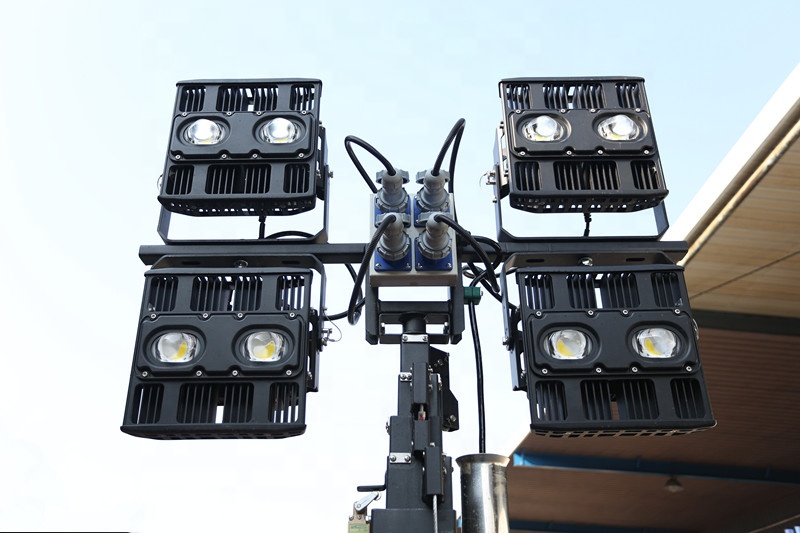

Mast &  Light	Type of Lights	LED
		Light fixture	Rectangle
		Luminous flux(LM)	33000LM/light
		Number & power of lights	12x300W
		Number of mast sections	3
		Mast lifting	Hydraulic
		Mast extention	Hydraulic
		Mast rotation	Hydraulic
		Light tilt	12VDC Electric linear actuator
Trailer	Trailer suspension & axle with brakes	SWT standard leaf springs & tandem axle with electromagnetic drum brakes
		Tow bar	Retractable & adjustable supporting wheel tow bar
		Stabilizing legs & number	4 pcs Hydraulic retractable legs
		Wheels' rim size & tire	16" rim with off road tires
		Tow adapter	2 ball or 3 ring adapter
		Tail lights	Tail light kit
		Max. towing speed	100km/h
Addtiional Features	Fuel tank type	Double wall
		Fuel tank capacity	228L
		Operating hours with full fuel	93/78 hours
		Wires & electric components	IP65
		Generator starting type or controller	LT920 PLC（SMARTGEN）
		Power outlet sockets	2 ps Australia standard 15A/240V single phase socket
		Maintenance tool	Option
		Max. against wind when fully extended	22m/s
		Acoustic pressure	70dB(A) at 7m away
		Standard color	Optional regular canopy's colour, black chasis, galvanized masts, tow bar & stabilizing legs
		Max. load qty in 40 HC	3
