Home > Products > Light Tower > SWT HVP4000 Mining Trailer Mounted Hydraulic Mast Mobile lighting tower

SWT HVP4000 Mining Trailer Mounted Hydraulic Mast Mobile lighting tower

Unit Price: 9300~15000 USD
Min. Order: 1 Set/Sets

Product Description

Product Overview 9meters Trailer Mounted Hydraulic Mast Mobile Light Tower 4HVP4000 4x1000W for mining siteSuperwatt VP series Hydraulic lighting tower is a model with vertical mast and hydraulic lifting system. The excellent-quality and multi-fault protection generator with the low-emission diesel Kubota engine power all of the lights stably and continuously. The model can be considered as a “two-in-one” solution for customers needing a mobile lighting tower that also works as a powerful Generator Set. FEATURES AT A GLANCE Powered by Kubota engine, Mecc alte generator 4X1000W metal halide light;
Lockable cabinet, easy access for service;

Low fuel consumption, can be running 49 hours with full load;

Safe and reliable 7-section telescoping mast powered by hydraulic ram rises up to 9 meters;

The telescoping mast rotates 359°manually, 330°self-locking;

The galvanized mast and the powder coated canopy endure the long time use outdoor;

Individual light breaker switches & ballast indicator lights.

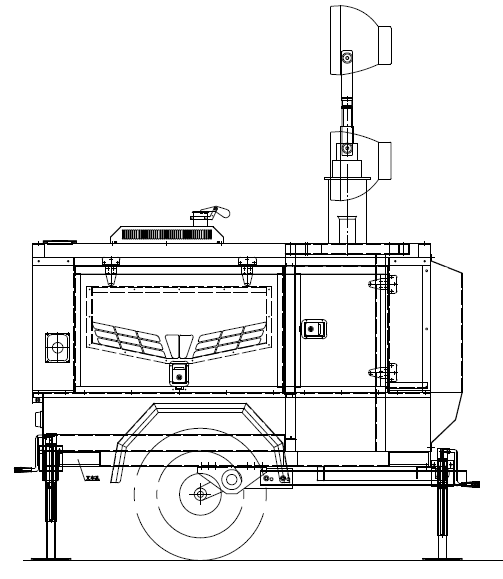

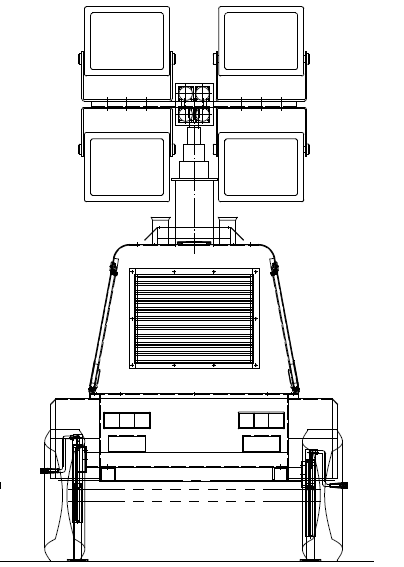

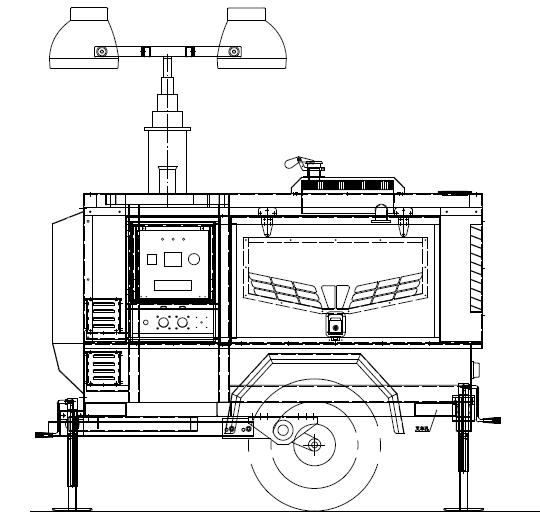

Three views
PRODUCT SPECIFICATIONS



Dimension
Length
4000mm
Dimension
Width
1620mm
2
Height
2460mm
3
Full extending height
9m
4
Generator set power(kW, 1500rpm/1800rpm)
6kW/7.5kW
5
Gross Weight
1410kg




Engine
Model
D1105-E2BG-CHN-1 (KUBOTA)
7
Speed(rpm)
1500/1800
8
Number of cylinders
3
Engine character
4 cycles, water-cooled diesel
Combustion System
E-TVS
Engine aspiration
Naturally aspirated
Emission level
Regular
Model
Mecc alte LT3N-130/4
Frequency(Hz)
50/60
Rated Voltage(V)
230V (50HZ), 240V (60HZ) AC
Insulation
Class H
Protection grade
IP23






Mast &  Light
Type of Lights
Metal Halide
Light fixture
Oval
Luminous flux(LM)
440000(4×110000)LM
Number & power of lights
4x1000W
Number of mast sections
7
Mast direction
Upright
Mast extention
Hydraulic
Mast rotation
359 rotating manually(330 self-locking)
Light tilt
Electric






Trailer
Trailer suspension & axle with brakes
Leaf springs & single axle without brake
Tow bar
Retractable & adjustable supporting wheel tow bar
Stabilizing legs & number
4pcs manual retractable support legs
Or 4pcs hydraulic pivot support legs
Wheels' rim size & tire
14 rim with regular tires
Tow adapter
2'' ball or 3'' ring adapter
Tail lights
Tail light kit
Max. towing speed
100km/h








Addtiional Features
Fuel tank type
Double-deck tank
Fuel tank capacity
120 liters
Operating hours with full fuel
49/41hours
Wires & electric components
Regular
Generator starting type or controller
HGM1790N(SMARTGEN)
Power outlet sockets
1 unit of Euro standard 16A/220V single phase power outlet socket
Maintenance tool
Option
Max. against wind when fully extended
20m/s
Acoustic pressure
70dB(A) at 7m away
Standard color
Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs
Max. load qty in 40 HC
7
PRODUCT CONFIGURATION Kubota engine Mecc alte alternator Metal halide light SALES AND SERVICE NETWORK Successful Project Project in AustraliaProject in UAEProject in China SIMILAR PRODUCTS Company Profile About usSWT, the pioneer of power equipment manufacturer in China, was established in 1993. After continued developing for more than 25
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
    We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include OPEN -type and silent type Diesel Generator Set, Gas Generator Set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.
    SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe. Customer Photos Diesel Power Station In YemenThis is a turn-key project and it took us less than 6 months to finish the entire project after we got the order, The design capacity of this power station is 15MW, 10.5KV, equipped with 26 sets diesel generators which rated power is 800KW, parallel operation system and high voltage distribution system. South Africa Power Station ProjectThis project is 4X1500KW stackable container power station (10.5kV, 50Hz), used for the gold mining in Sudan. The running conditions is harsh and horrible due to the frequent dust storms at site, so the generator sets is easy to get damaged and failed to work. But SWT offered the creative stackable containerized solution and eventually solved the anti-dust issue, over 5 years have passed, the generators have still worked well. Huawei Cloud Computing Data CenterHUAWEI is a leading global information and communications technology (ICT), and this project is the 5th big data center in China and SWT is the exclusive supplier of backup power systems for this project which equipped with 6sets 1800kW, 50Hz, 10.5kV, Perkins engine and Mecc Alte alternator, 40HC containerized high voltage Diesel Generator set. Certificates & Awards FAQ 1. What is your warranty period?

Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).

2. What is your payment term?

T/T 30% advance payment, the balance 70% shall be paid before shipment.L/C at sight irrevocable for regular customer.

3. What is your delivery time?

Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.

4. Can the generators be customized?

Yes. Our advantage is to provide customized power products, especially for large projects.

5. Can you OEM with our brand?

Yes. For mass orders, we can offer OEM use customer's logo instead of ours,

For more questions, Please feel free to contact us.
