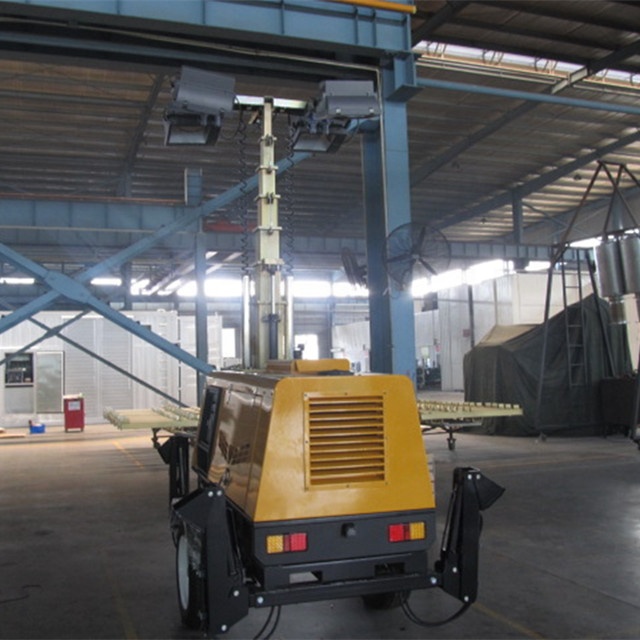

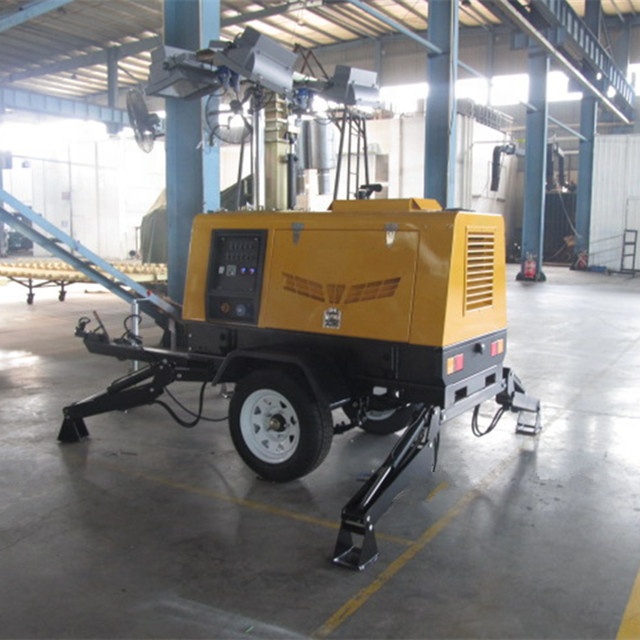

SWT HVL4000 Metal halide lamp Hydraulic Mast Mobile Light Tower with 6KW silent diesel generator

Product Overview 9meters Trailer Mounted Hydraulic Mast Mobile Light Tower 4HVL4000 4x1000W for mining siteSWT HVL series lighting tower is one of the classic model with 4 Metal Halide lights and powered by low emission Kubota engine. The mast operate type is hydraulic, extending to 9 meters. It can be used in mining site. FEATURES AT A GLANCE Powered by Kubota engine, Mecc alte generator 4X1000W metal halide light;
Lockable cabinet, easy access for service;

Low fuel consumption, can be running 49 hours with full load;

Safe and reliable 7-section telescoping mast powered by hydraulic ram rises up to 9 meters;

The telescoping mast rotates 359°manually, 330°self-locking;

Low oil pressure/high temperature automatic shutdowns;

Individual light breaker switches & ballast indicator lights.
Product three views
PRODUCT SPECIFICATIONS

Dimension	Length	4000mm
	Dimension	Width	1620mm
	2	Height	2460mm
	3	Full extending height	9m
	4	Generator Set power(kW, 1500rpm/1800rpm)	6kW/7.5kW
	5	Gross Weight	1410kg
Engine	Model	D1105-E2BG-CHN-1 (KUBOTA)
	7	Speed(rpm)	1500/1800
	8	Number of cylinders	3
		Engine character	4 cycles, water-cooled diesel
		Combustion System	E-TVS
		Engine aspiration	Naturally aspirated
		Emission level	Regular
Alternator	Model	LT3N-130/4 (MECCALTE)
		Frequency(Hz)	50/60
		Rated Voltage(V)	230V (50HZ), 240V (60HZ) AC
		Insulation	Class H
		Protection grade	IP23
Mast &  Light	Type of Lights	Metal Halide
		Light fixture	Oval
		Luminous flux(LM)	440000(4×110000)LM
		Number & power of lights	4x1000W
		Number of mast sections	7
		Mast direction	Upright
		Mast extention	Hydraulic
		Mast rotation	359° Manually (330° lockable)
		Light tilt	Electric
Trailer	Trailer suspension & axle with brakes	Leaf springs & single axle without brake
		Tow bar	Retractable & adjustable supporting wheel tow bar
		Stabilizing legs & number	4pcs manual retractable support legs Or 4pcs hydraulic pivot support legs
		Wheels' rim size & tire	14 rim with regular tires
		Tow adapter	2" ball or 3'' ring
		Tail lights	Tail light kit
		Max. towing speed	100km/h
Addtiional Features	Fuel tank type	Double-deck tank
		Fuel tank capacity	120 liters
		Operating hours with full fuel	49/41 hours
		Wires & electric components	Regular
		Generator starting type or controller	HGM1790N（SMARTGEN）
		Power outlet sockets	1 unit of Euro standard 16A/220V single phase power outlet socket
		Maintenance tool	Option
		Max. against wind when fully extended	20m/s
		Acoustic pressure	70dB(A) at 7m away
		Standard color	Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs
		Max. load qty in 40 HC	7

PRODUCT CONFIGURATION             Kubota engine Mecc alte alternator Metal halide light SALES AND SERVICE NETWORK Successful Project Project in AustraliaProject in UAEProject in China SIMILAR PRODUCTS Company Profile About usSWT, the pioneer of power equipment manufacturer in China, was established in 1993. After continued developing for more than 25
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
    We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include OPEN -type and silent type Diesel Generator Set, Gas Generator Set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.
    SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe. Customer Photos Diesel Power Station In YemenThis is a turn-key project and it took us less than 6 months to finish the entire project after we got the order, The design capacity of this power station is 15MW, 10.5KV, equipped with 26 sets diesel generators which rated power is 800KW, parallel operation system and high voltage distribution system. South Africa Power Station ProjectThis project is 4X1500KW stackable container power station (10.5kV, 50Hz), used for the gold mining in Sudan. The running conditions is harsh and horrible due to the frequent dust storms at site, so the generator sets is easy to get damaged and failed to work. But SWT offered the creative stackable containerized solution and eventually solved the anti-dust issue, over 5 years have passed, the generators have still worked well. Huawei Cloud Computing Data CenterHUAWEI is a leading global information and communications technology (ICT), and this project is the 5th big data center in China and SWT is the exclusive supplier of backup power systems for this project which equipped with 6sets 1800kW, 50Hz, 10.5kV, Perkins engine and Mecc Alte alternator, 40HC containerized high voltage Diesel Generator set. Certificates & Awards FAQ 1. What is your warranty period?
