SWT 4TN LED Light Tower

Product Overview TN LED Series 9meters Trailer Mounted Manual Mast Mobile Light Tower for outdoor workingSWT TN series LED lighting tower is one of the classic model with 4 LEDs and powered by low emission Kubota engine. Featuring a telescoping tower that lies flat for low transport and storage height, the tower rises to 9 meters with two winches when deployed. State-of-the-art technology provides superior illumination with LEDs. For fast job-site setup and less downtime, each light fixture can be aimed independently without the use of tools—and the fixtures stay in place once positioned. Reduce glare and minimize light pollution with new unique designed diffuse LED light safe and comfortable to use for road maintenance, construction site etc. FEATURES AT A GLANCE Powered by Kubota engine, Mecc alte generator, can be equipped with 4X300W, 4X350W, 4X400W LED lights;
Lockable cabinet, easy access for service

Low fuel consumption, approximately 130 hours of run time before refueling

Adjustable, 9 meters telescoping mast rotates 359o, 330o self-locking

Long lasting and high output LED, boasting 50,000 hour service life

Individual light breaker switches & ballast indicator lights

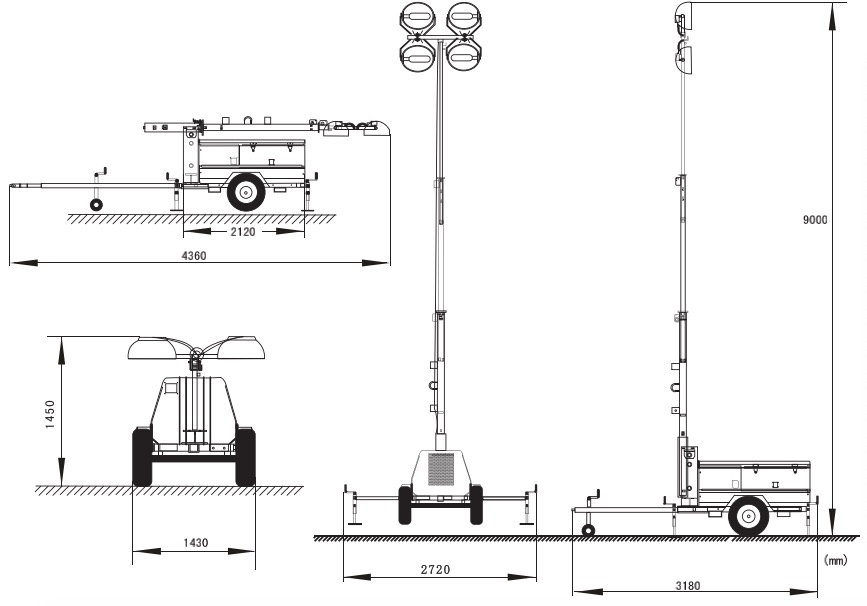

Three views
PRODUCT SPECIFICATIONS

Dimension	Length	4360mm
	Dimension	Width	1430mm
	2	Height	1450mm
	3	Full extending height	9m
	4	Generator Set power(kW, 1500rpm/1800rpm)	3kW/3.5kW
	5	Gross Weight	910kg
Engine	Model	Z482 (KUBOTA)
	7	Speed(rpm)	1500/1800
	8	Number of cylinders	2
		Engine character	4 cycles, water-cooled diesel
		Combustion System	Direct injection
		Engine aspiration	Naturally aspirated
		Emission level	Regular
Alternator	Model	LT3N-75/4 (MECCALTE)
		Frequency(Hz)	50/60
		Rated Voltage(V)	230V (50HZ), 240V (60HZ) AC
		Insulation	Class H
		Protection grade	IP23
Mast &  Light	Type of Lights	LED
		Light fixture	Rectangle
		Luminous flux(LM)	39000LM/light
		Number & power of lights	4x300W, 4X350W, 4X400W
		Number of mast sections	3
		Mast lifting	Manually
		Mast extention	Manually
		Mast rotation	359 rotating manually(330 self-locking)
		Light tilt	Maually
Trailer	Trailer suspension & axle with brakes	Leaf springs & single axle without brake
		Tow bar	Retractable & adjustable supporting wheel tow bar
		Stabilizing legs & number	4 pcs extendable bar with manually retractable jacks
		Wheels' rim size & tire	14 rim with regular tires
		Tow adapter	2'' ball or 3'' ring adapter
		Tail lights	Tail reflector
		Max. towing speed	80km/h
Addtiional Features	Fuel tank type	Rotational moulding plastic
		Fuel tank capacity	170L
		Operating hours with full fuel	132/118 hours
		Wires & electric components	Regular
		Generator starting type or controller	HGM1790N (SMARTGEN)
		Power outlet sockets	2 sets
		Maintenance tool	Option
		Max. against wind when fully extended	20m/s
		Acoustic pressure	72dB(A) at 7m away
		Standard color	Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs
		Max. load qty in 40 HC	12

PRODUCT CONFIGURATION Kubota engine Mecc alte alternator LED light SALES AND SERVICE NETWORK Successful Project Project in AustraliaProject in UAEProject in China SIMILAR PRODUCTS Company Profile About usSWT, the pioneer of power equipment manufacturer in China, was established in 1993. After continued developing for more than 25
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
    We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include OPEN -type and silent type Diesel Generator Set, Gas Generator Set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.

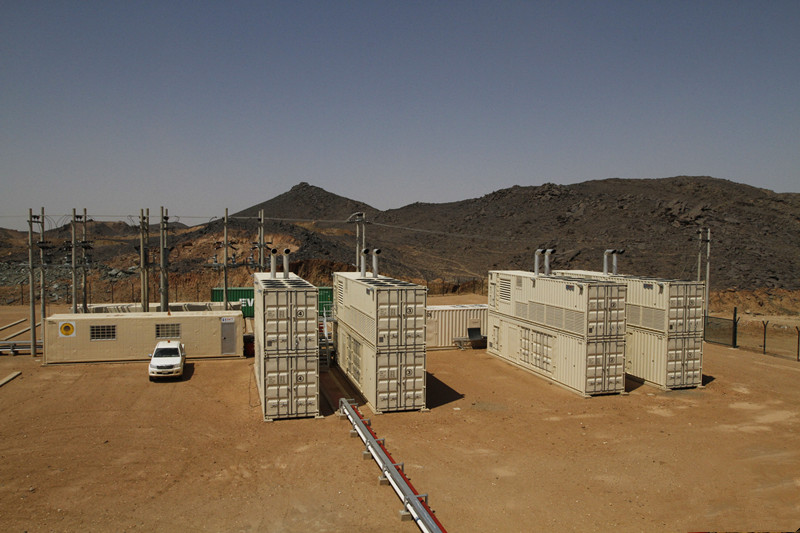

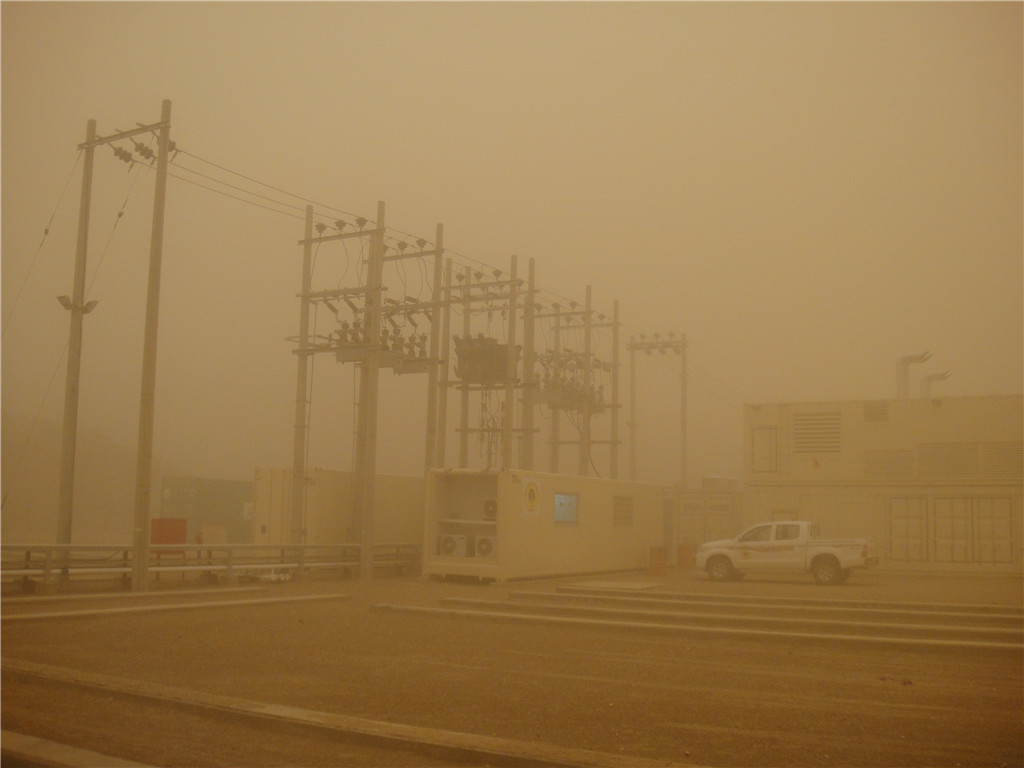

    SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe. Customer Photos Diesel Power Station In YemenThis is a turn-key project and it took us less than 6 months to finish the entire project after we got the order, The design capacity of this power station is 15MW, 10.5KV, equipped with 26 sets diesel generators which rated power is 800KW, parallel operation system and high voltage distribution system. South Africa Power Station ProjectThis project is 4X1500KW stackable container power station (10.5kV, 50Hz), used for the gold mining in Sudan. The running conditions is harsh and horrible due to the frequent dust storms at site, so the generator sets is easy to get damaged and failed to work. But SWT offered the creative stackable containerized solution and eventually solved the anti-dust issue, over 5 years have passed, the generators have still worked well. Huawei Cloud Computing Data CenterHUAWEI is a leading global information and communications technology (ICT), and this project is the 5th big data center in China and SWT is the exclusive supplier of backup power systems for this project which equipped with 6sets 1800kW, 50Hz, 10.5kV, Perkins engine and Mecc Alte alternator, 40HC containerized high voltage Diesel Generator set. Certificates & Awards FAQ 1. What is your warranty period?
